Noise circles and available gain circles are the tools that give the most guidance on design tradeoffs. 4 and Appendices K and L of Gonzalez for the theory behind these analyses. Ads lna design tutorial.
Ads Lna Design Tutorial, Background preparation Please read the Application Note Spectre RF Workshop LNA Design Using SpectreRF SpectreRF_LNA_MMSIM141pdf pp. Source degeneration offers lower noise figures 2-3dB than the Common-gate LNA topographies with NF of 5dB. Design a low-noise single stage amplifier using microstrip on 1-mm-thick alumina substrate εr 96 and a FET proposed type.

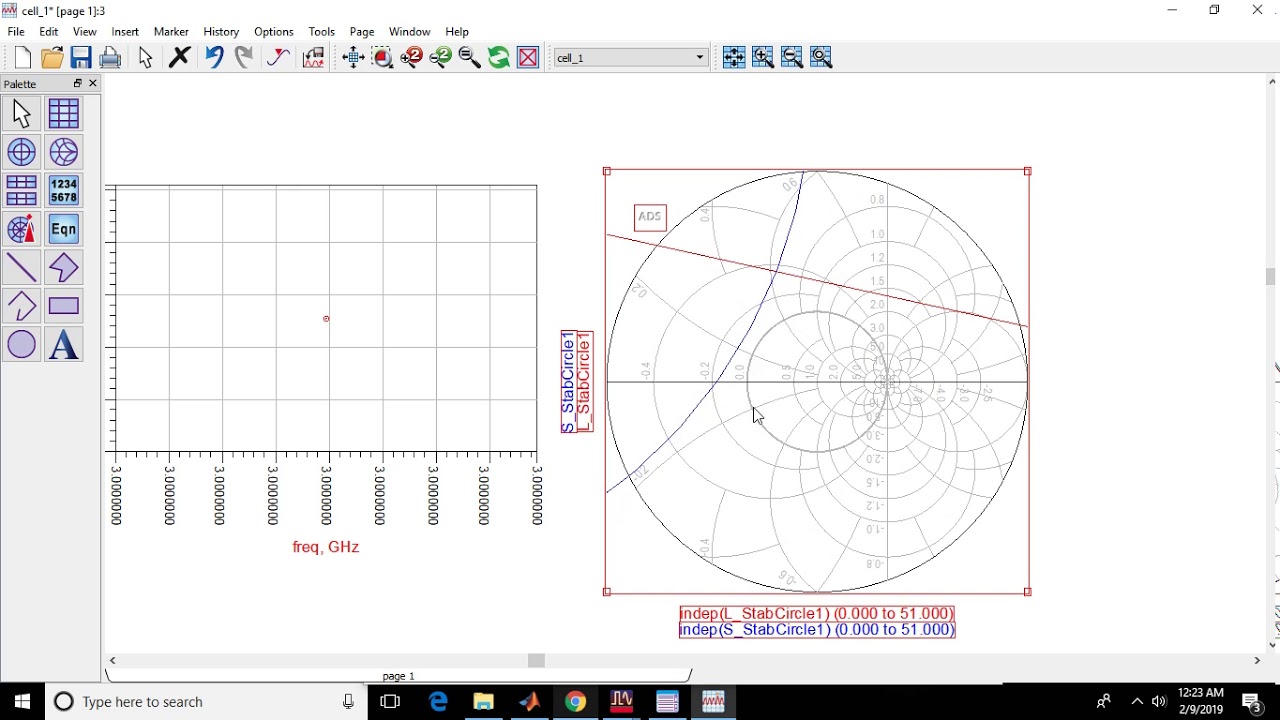

How To Design A 3 Ghz Lna On Ads 1 Of 2 Youtube From youtube.com
Tuned LNA design notes MOSFET LNA design usually compromises noise figure for power dissipation low-noise current is too high In this approach linearity increases with Z O. Noise circles and available gain circles are the tools that give the most guidance on design tradeoffs. Low Noise Microwave Amplifier Design Tutorial - Part 7 High Linearity Final Amplifier Evaluation In this installment of the LNA Design Series I reveal the performance evaluation results of the ATF-50189 Amplifier in a Balanced arrangement using 90-degree quadrature hybrid couplers. Source degeneration offers lower noise figures 2-3dB than the Common-gate LNA topographies with NF of 5dB.
3GPP Uplink BER Receiver Characteristics Test.
1dB Output VSWR max. LOW NOISE AMPLIFIER LNA DESIGN Kalavakuru Sivadeep Reddy skalavaksyredu Prof. 5-13 available on the course page and together with the lecture material answer the following questions before you. In the second video I will design the actual. Connected Solution for WiMax OFDM Transmission Test. Dual Band Lna Design For Wireless Lan Applications Eeweb Community.
Read another article:
Source: youtube.com
Using ADS to simulate Noise Figure ADS can be used to design low noise amplifiers much in the same way you have already used it for MAG or MSG designs. Unconditional stability of the circuit is the goal of the LNA designer. Connected Solution for WiMax OFDM Transmission Test. WLAN 80211a Receiver Minimum Input Level Sensitivity Test. Automatic Em Circuit Co Simulation In Ads 2014 Demo Youtube.
Source: researchgate.net
See the appendix at the end of this tutorial for more information on S2P files. Design theory and the rele-vant equations are given with a worked example using Agilent ADS simulation circuits and plots. 1dB Output VSWR max. Practical Considerations for Low Noise Amplifier Design Freescale Semiconductor Inc. Ads Schematic Of Lna For Uwb Download Scientific Diagram.
Source: youtube.com
Lna Design Using Ads Tutorial. NE3210S01 with the following specifications. Dual Band Lna Design For Wireless Lan Applications Eeweb Community. 0 52013 Rn Ω The equivalent noise resistance the NF sensitivity to the deviation between Ysource and Yopt Yin S The normalized input admittance for maximum power transfer Ysource S The normalized admittance presented to the LNA input. Simple Design Of Amplifier Ads Youtube.
Source: youtube.com
Noise circles and available gain circles are the tools that give the most guidance on design tradeoffs. Using ADS to simulate Noise Figure ADS can be used to design low noise amplifiers much in the same way you have already used it for MAG or MSG designs. The simulation has been performed using Advanced Design System ADS simulation software. 4 and Appendices K and L of Gonzalez for the theory behind these analyses. How To Design A 3 Ghz Lna On Ads 1 Of 2 Youtube.
Source: edadocs.software.keysight.com
Practical Considerations for Low Noise Amplifier Design Freescale Semiconductor Inc. Low Noise Amplifier Design and Optimization IV1 CMOS LNA Design and Optimization Overview Low Noise Amplifier LNA is the most critical part of a receiver front end in term of the receiver performance. NE3210S01 with the following specifications. Design theory and the rele-vant equations are given with a worked example using Agilent ADS simulation circuits and plots. Design Of A 1ghz Low Noise Amplifier Ads 2009 Keysight Knowledge Center.
Source: rahsoft.com
Stability Design should be the next step in LNA design. In the second video I will design the actual. This tutorial describes the theory and design on a MOS Low noise amplifier using source de-generation. Https Www Ijser Org Researchpaper Band Pass Filter And Low Noise Amplifier Design Using Advanced Design System Ads Pdf. Keysight Advanced Design System Applications Course Tutorial.
Source: edadocs.software.keysight.com
Noise circles and available gain circles are the tools that give the most guidance on design tradeoffs. Email protected 1 ABSTRACT This tutorial describes the theory and design on a MOS Low noise amplifier using source degeneration. Brandon Choi School Of Engineering and Computer Science Syracuse University Stability Analysis Abstract– Low noise amplifiers are one of the Stability test is one of the most important tasks to basic building blocks of any communication verify whether the. SIMULATION RESULTS AND DISCUSSION In LNA design the most important factors are low noise moderate gain matching and stability. Design Of A 1ghz Low Noise Amplifier Ads 2009 Keysight Knowledge Center.
Source: youtube.com
Noise Figure by Current Gain This can be rewritten as io Gmvs where Gm j ωT ω 1 Rs Rg This facilitates the noise calculations since the total noise is given by i2 oT G 2 mvg2 v2si2 d And the noise figure is easily computed. NE3210S01 with the following specifications. SIMULATION RESULTS AND DISCUSSION In LNA design the most important factors are low noise moderate gain matching and stability. TSEK03 Integrated Radio Frequency Circuits 2018Ted Johansson 426 2. Part 1 How To Start Common Source Lna Ic Design In Ads Step By Step Guide Part 1 Youtube.
Source: pinterest.com
Using ADS to simulate Noise Figure ADS can be used to design low noise amplifiers much in the same way you have already used it for MAG or MSG designs. Design theory and the rele-vant equations are given with a worked example using Agilent ADS simulation circuits and plots. TSEK03 Integrated Radio Frequency Circuits 2018Ted Johansson 426 2. Noise circles and available gain circles are the tools that give the most guidance on design tradeoffs. Tanti Auguri A Te Lettering Ad Sponsored Aff Auguri Te Lettering Tanti Lettering Business Card Template Psd Happy Birthday.
Source: youtube.com
Practical Considerations for Low Noise Amplifier Design Freescale Semiconductor Inc. Tuned LNA design notes MOSFET LNA design usually compromises noise figure for power dissipation low-noise current is too high In this approach linearity increases with Z O. Source degeneration offers lower noise figures 2-3dB than the Common-gate LNA topographies with NF of 5dB. Https Www Ijser Org Researchpaper Band Pass Filter And Low Noise Amplifier Design Using Advanced Design System Ads Pdf. Cross Coupled Oscillator Simulation In Ads Phase Noise Analysis Youtube.
Source: ar.pinterest.com
Design theory and the rele-vant equations are given with a worked example using Agilent ADS simulation circuits and plots. LNA Design Simulation Procedures for Successful Low Noise Amplifier LNA Design Using Discrete Components By Sonoko Akamatsu Scott Muir and Larry Dunleavy Introduction This tutorial is intended to guide the user through the stages of a basic low noise ampli-fier design and optimiza-tion with a goal of first-pass fabricated design success. The thesis includes the bias network design stability analysis matching network design and layout design of the LNA RF module with layout simulation. Brandon Choi School Of Engineering and Computer Science Syracuse University Stability Analysis Abstract– Low noise amplifiers are one of the Stability test is one of the most important tasks to basic building blocks of any communication verify whether the. Pin On Diseno De Interiores.
Source:
Source degeneration offers lower noise figures 2-3dB than the Common-gate LNA topogra-phies with NF of 5dB. Https Www Modelithics Com Freedownloads Publishedpaper 1210 Hfe Simulationprocedures Pdf. See the appendix at the end of this tutorial for more information on S2P files. For convenience I chose to use the X3C19P2 coupler model for. W62xcnmpru0hqm.
Source: edadocs.software.keysight.com
In the second video I will design the actual. LNA Design Simulation Procedures for Successful Low Noise Amplifier LNA Design Using Discrete Components By Sonoko Akamatsu Scott Muir and Larry Dunleavy Introduction This tutorial is intended to guide the user through the stages of a basic low noise ampli-fier design and optimiza-tion with a goal of first-pass fabricated design success. The purpose of the LNA is to amplify the received signal to acceptable levels. 3GPP Uplink BER Receiver Characteristics Test. Design Of A 1ghz Low Noise Amplifier Ads 2009 Keysight Knowledge Center.
Source: youtube.com
Become an ADS expert and start your path on becoming an RFIC expert by taking the Advanced Design System online course. Brandon Choi School Of Engineering and Computer Science Syracuse University Stability Analysis Abstract– Low noise amplifiers are one of the Stability test is one of the most important tasks to basic building blocks of any communication verify whether the. This tutorial describes the theory and design on a MOS Low noise amplifier using source de-generation. In this case you may have to enter the noise parameters as well using equations on the data display panel. How To Design A 3 Ghz Lna On Ads 1 Of 2 Youtube.
Source: youtube.com
TSEK03 Integrated Radio Frequency Circuits 2018Ted Johansson 426 2. ADS will look for the file in the ADS projects data directory. Source degeneration offers lower noise figures 2-3dB than the Common-gate LNA topogra-phies with NF of 5dB. The purpose of the LNA is to amplify the received signal to acceptable levels. How To Design And Simulate Filters Lpf Hpf And Bpf Using Keysight Ads Youtube.
